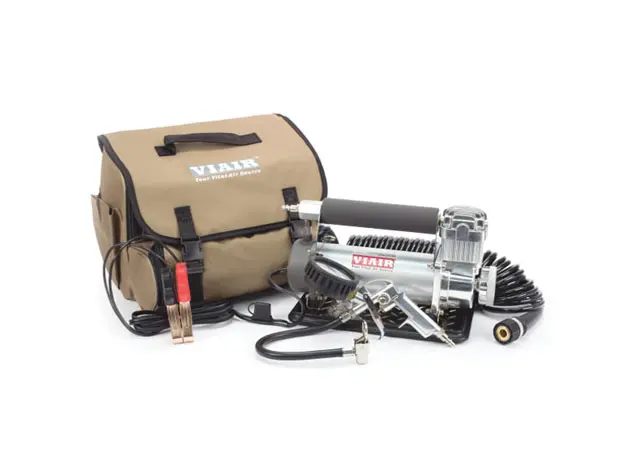

450P-A Automatic Portable Compressor Kit

https://universalair-uas.odoo.com/web/image/product.template/506/image_1920?unique=554c4ac
(0 review)

450P-Automatic Portable Compressor Kit (12V, CE, 100% Duty, 150 PSI)

$ 444.95 444.95 USD $ 444.95

$ 444.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004544
    Shipping Weight: 18 lb
    Internal Reference: VA-45043
    Brand: Viair
    Manufacture Part Number: 45043

    450P-Automatic Portable Compressor Kit (12V, CE, 100% Duty, 150 PSI)

    450P-Automatic offers an automatic shut-off function in a larger portable compressor. This 100% duty cycle unit is capable of pressures up to 150 PSI and can be operated for up to 40 minutes at a time before needing to be rested. The 450P-Automatic comes with a close-ended gas station-style air gun for added convenience. Portable compressors with automatic shutoff come into play when moving from tire to tire, and when checking tire pressure in the middle of a tire fill. A typical portable compressor must be turned off between tire fills, and anytime you want to check tire pressure. If you aren’t near the compressor, this can turn into running laps back and forth to the portable compressor to turn the unit on and off. Automatic portables do not work in this fashion and will save you time & effort to get tires inflated quickly.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    Vibration-Resistant Diamond-Plate Sand Tray– Permanent Magnetic Motor
    – Quick Connect Extension Air Hose with Heat Shield– Duty Cycle: 100% @ 100 PSI
    – Gas Station-Style Tire Inflation Gun with 160 PSI Gauge– Max. Working Pressure: 150 PSI
    – Deluxe Dual Compartment Carry Bag– Max. Amp Draw: 23 Amps
    – 40-amp Inline Fuse Holder– Ingress Protection Rating: IP54
    – 3 pc. Inflation Tips Kit– Dimensions: 12.4″L x 5.8″W x 7.5″H
    – Dual Battery Clamps– Net Weight: 13.05 lbs.
     – 3 pc. Inflation Tips Kit– Power Cord Length: 8 ft.
    –– Air Hose Length: 30 ft.

    Performance Data

    PSICFMABARLPMA
    0
    		1.8012
    		0
    		51.012
    10
    		1.7514
    		1.047.615
    20
    		1.6016
    		2.043.317
    30
    		1.5217
    		3.038.218
    40
    		1.3918
    		4.034.019
    50
    		1.2719
    		5.030.520
    60
    		1.1819
    		6.028.121
    70
    		1.0920
    		7.026.422
    80
    		1.0420
    		8.025.023
    90
    		0.9721
    		9.023.022
    100
    		0.9422
    		10.021.021
    110
    		0.9023



    120
    		0.8623



    130
    		0.8122



    140
    		0.7621



    150
    		0.7220



    * Supply Voltage: 13.8 Volts

    Fill Rate

    31″ x 10.5″Fill Rate
    0 to 30 PSI4 min. 05 sec. (±10 sec.)
    15 to 30 PSI2 min. 10 sec. (±05 sec.)
    33″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 30 sec. (±10 sec.)
    15 to 30 PSI2 min. 50 sec. (±05 sec.)
    35″ x 12.5″Fill Rate
    0 to 30 PSI6 min. 55 sec. (± 15 sec.)
    15 to 30 PSI3 min. 30 sec. (± 10 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI7 min. 56 sec. (± 15 sec.)
    15 to 30 PSI4 min. 09 sec. (± 10 sec.)
