450C IG Series Compressor Kit

https://universalair-uas.odoo.com/web/image/product.template/503/image_1920?unique=d3c1cef
(0 review)

450C IG Series Compressor Kit (12V, Intercooler Head, 100% Duty, Sealed)

$ 432.95 432.95 USD $ 432.95

$ 432.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004551
    Shipping Weight: 12 lb
    Internal Reference: VA-45050
    Brand: Viair
    Manufacture Part Number: 45050

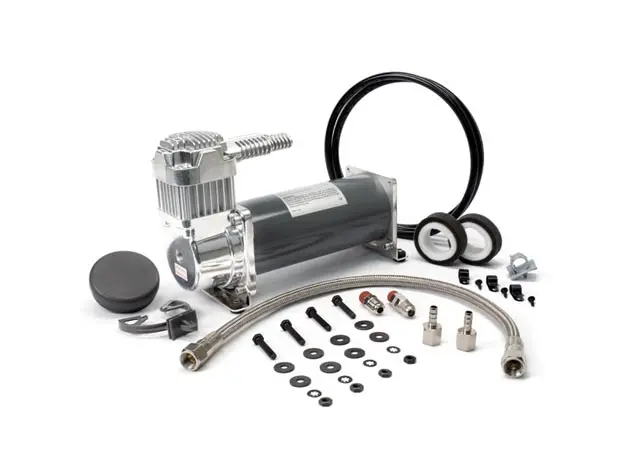

    450C IG Series Compressor Kit (12V, Intercooler Head, 100% Duty, Sealed)

    Industrial Grade (IG) compressors feature an innovative patents pending head design for better heat dissipation and are specifically designed to fill reservoir tanks. All IG compressors are certified CE spec. and feature outstanding sealing properties against the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. This unit is oil-less and is rated at 13.8 volts to a charging car battery.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt / 24-Volt
    – Vibration Isolators– Permanent Magnetic Motor
    – Mounting Hardware– Duty Cycle: 100% @ 100 PSI
    – Heavy Duty 1/4″ NPT Check Valve– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided PTFE-Lined Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 23 Amps
    – Remote Mount Air Filter Assembly– Max. 24V Amp Draw: 13 Amps
    – (2) Replacement Air Filter Elements– Ingress Protection Rating: IP67
    – Installation Instructions– Max. Ambient Temp: +158°F
    –– Min. Ambient Temp: -40°F
    –– Dimensions: 11.25″L x 4″W x 6.75″H
    –– Net Weight: 10.40 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		1.8012
    		0
    		51.012
    10
    		1.7514
    		1.047.615
    20
    		1.6016
    		2.043.317
    30
    		1.5217
    		3.038.218
    40
    		1.3918
    		4.034.019
    50
    		1.2719
    		5.030.520
    60
    		1.1819
    		6.028.121
    70
    		1.0920
    		7.026.422
    80
    		1.0420
    		8.025.023
    90
    		0.9721
    		9.023.022
    100
    		0.9422
    		10.021.021
    110
    		0.9023



    120
    		0.8623



    130
    		0.8122



    140
    		0.7621



    150
    		0.7221



    * Supply Voltage: 13.8 Volts

    24-Volt Compressor

    PSICFMABARLPMA
    0
    		2.208
    		0
    		62.38
    10
    		1.989
    		1.054.510
    20
    		1.8611
    		2.050.611
    30
    		1.7811
    		3.047.011
    40
    		1.6911
    		4.043.412
    50
    		1.59125.040.612
    60
    		1.52126.037.712
    70
    		1.45127.035.013
    80
    		1.38128.032.012
    90
    		1.31129.028.512
    100
    		1.2413
    		10.026.012
    110
    		1.1713



    120
    		1.0912


    130
    		1.0112


    140
    		0.9512


    150
    		0.8812


    * Supply Voltage: 28.0 Volts

    12-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 55 sec. (± 10 sec.)
    85 to 105 PSI28 sec. (± 05 sec.)
    0 to 145 PSI3 min. 02 sec. (± 10 sec.)
    110 to 145 PSI59 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI4 min. 00 sec. (± 10 sec.)
    85 to 105 PSI58 sec. (± 05 sec.)
    0 to 145 PSI6 min. 25 sec. (± 15 sec.)
    110 to 145 PSI2 min. 11 sec. (± 10 sec.)

    24-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 45 sec. (± 10 sec.)
    85 to 105 PSI25 sec. (± 05 sec.)
    0 to 145 PSI2 min. 40 sec. (± 10 sec.)
    110 to 145 PSI50 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI3 min. 20 sec. (± 10 sec.)
    85 to 105 PSI50 sec. (± 05 sec.)
    0 to 145 PSI5 min. 15 sec. (± 15 sec.)
    110 to 145 PSI1 min. 45 sec. (± 10 sec.)
