Constant Duty ADA Base Model 85-105

https://universalair-uas.odoo.com/web/image/product.template/1472/image_1920?unique=08074c1

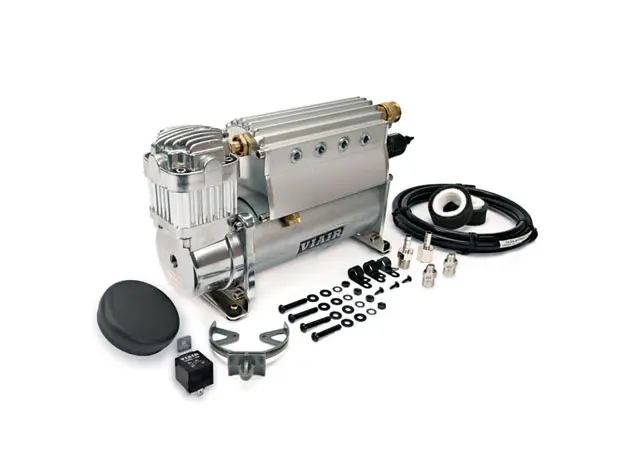

Constant Duty ADA, Base Model Kit, 85/105 PSI

$ 494.95 494.95 USD $ 494.95

$ 494.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004483
    Shipping Weight: 14 lb
    Internal Reference: VA-45052
    Brand: Viair
    Manufacture Part Number: 45052

    Constant Duty ADA, Base Model Kit, 85/105 PSI

    VIAIR Corporation is proud to offer our new Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space. VIAIR ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 450C (Constant Duty) compressor at its core.

    Note: P/N 42045 should not be used for Load Leveling. P/N 42047 should not be used for Air Lockers.

    Features & Specifications

    Features
    		Specifications
    – 450C Compressor w/Thermal Overload Protector– 12-Volt
    – Extruded Aluminum Air Tank (12-port)– Permanent Magnetic Motor
    – Pre-installed Safety Valve– Duty Cycle: 100% @ 100 PSI
    – Pre-installed 1/8” NPT Drain Cock– Max. Working Pressure: 150 PSI
    – Pre-installed Safety Valve– Max. Amp Draw: 23 Amps
    – Pre-installed 85/105 PSI Pressure Switch (P/N 45052)– Ingress Protection Rating: IP67
    – Pre-installed 110/145 PSI Pressure Switch (P/N 45054)– Dimensions: 9.38″L x 4″W x 6.75″H
    – (8) Pre-installed 1/4” NPT Recessed Port Plugs– Net Weight: 12.5 lbs.
    – Pre-installed Quick Connect Coupler–
    – 40-amp Relay–
    – (2) 1/4” NPT to 1/8” BSP Adapters–
    – 1” NPT M Barbed Fitting for 1/4” Air Line–
    – 1” NPT F Barbed Fitting for 1/4” Air Line–
     – Coiled Air Line (For Remote Mount Air Filter Installation)–
     – Air Filter Housing–
    – (2) Replacement Air Filter Elements–
     – Mounting Hardware–

    Performance Data

    PSICFMABARLPMA
    0
    		1.8012
    		0
    		51.012
    10
    		1.7514
    		1.047.615
    201.6016
    		2.043.317
    301.5217
    		3.038.218
    401.3918
    		4.034.019
    501.27195.030.520
    601.18196.028.121
    701.0920
    		7.026.422
    801.0420
    		8.025.023
    900.9721
    		9.025.022
    1000.9422
    		10.023.0
    		21
    1100.9023



    1200.8623


    1300.8122



    1400.7621



    1500.7220



    * Supply Voltage: 13.8 Volts

    Fill Rate

    33” x 12.5″Fill Rate
    0 to 30 PSI5 min. 30 sec. (± 10 sec.)
    15 to 30 PSI2 min. 50 sec. (± 05 sec.)
    35” x 12.5”Fill Rate
    0 to 30 PSI6 min. 55 sec. (± 15 sec.)
    15 to 30 PSI3 min. 30 sec. (± 10 sec.)
    37” x 12.5”Fill Rate
    0 to 30 PSI7 min. 56 sec. (± 15 sec.)
    15 to 30 PSI4 min. 09 sec. (± 10 sec.)
