Constant Duty Automatic Deployment Air System

https://universalair-uas.odoo.com/web/image/product.template/1473/image_1920?unique=529793e
(0 review)

Constant Duty ADA System, Universal-Mount, w/Inflation Kit

$ 625.95 625.95 USD $ 625.95

$ 625.95

    This combination does not exist.

    Contact Us



    Barcode: 818114005558
    Shipping Weight: 19 lb
    Internal Reference: VA-45055
    Brand: Viair
    Manufacture Part Number: 45055

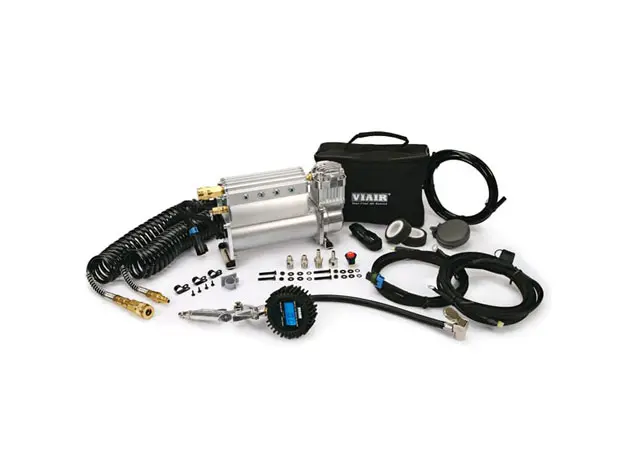

    Constant Duty ADA System, Universal-Mount, w/Inflation Kit

    Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.

    Features & Specifications

    Features
    		Specifications
    – 450C Compressor w/Thermal Overload Protector– 12-Volt
    – Extruded Aluminum Air Tank (12-port)– Permanent Magnetic Motor
    – Toggle Switch– Duty Cycle: 100% @ 100 PSI
    – Air Line for Remote Mount Air Filter Installation– Max. Working Pressure: 150 PSI
    – (2) Remote Mount Air Filter Relocation Fittings– Max. Amp Draw: 23 Amps
    – 1/8” NPT Drain Cock– Ingress Protection Rating: IP67
    – 1/4” NPT Safety Valve– Dimensions: 9.38″L x 4″W x 6.75″H
    – (8) 1/4” NPT Hex Plug– Net Weight: 12.5 lbs.
    – 1/4” NPT Sealed Pressure Switch (85/105 PSI)–
    – (2) 1/4” NPT BSP Adapter–
    – 1/4” NPT Automatic Coupler–
    WIRING HARNESSDIGITAL TIRE INFLATION KIT
    – 30-amp Delphi Connector Set– 30’ Inflation Hose w/(M & F) Quick connect Couplers
    – 60-amp Fuse Holder– 180 PSI Digital Tire Inflation Gun
    – 40-amp Fuse– Carry Bag
    – 20” Inside Braided Mesh Loom Wire w/1/4” I.D. Insulated Ring Terminal & 1/4” (F) Insulated Spade Terminal.–
    – 12ft. Inside Braided Mesh Loom Wire w/Inline 40A Fuse, 1/4” I.D. Insulated Ring Terminal & 1/4” (F) Insulated Spade Terminal.–
    – 6ft. Inside Braided Mesh Loom Wire w/1/4” (M) Insulated 20A Delphi Connector & 1/4” (F) Insulated Spade Terminal.–
    – (1) 3-prong Red LED Toggle Switch–

    Performance Data

    PSICFMABARLPMA
    0
    		1.8012
    		0
    		51.012
    101.7514
    		1.047.615
    201.6016
    		2.043.317
    301.5217
    		3.038.218
    401.3918
    		4.034.019
    501.2716
    		5.030.520
    601.1819
    		6.028.121
    701.0920
    		7.026.422
    801.0420
    		8.025.023
    900.9721
    		9.023.022
    1000.9422
    		10.021.021
    1100.9023



    1200.8623



    1300.8122



    1400.7621



    150
    		0.7220



    * Supply Voltage: 13.8 Volts

    Fill Rates

    33” x 12.5″Fill Rate
    0 to 30 PSI5 min. 30 sec. (± 10 sec.)
    15 to 30 PSI2 min. 50 sec. (± 05 sec.)
    35” x 12.5”Fill Rate
    0 to 30 PSI6 min. 55 sec. (± 15 sec.)
    15 to 30 PSI3 min. 30 sec. (± 10 sec.)
    37” x 12.5”Fill Rate
    0 to 30 PSI7 min. 56 sec. (± 15 sec.)
    15 to 30 PSI4 min. 09 sec. (± 10 sec.)
