480C Dual Pewter Value Pack

https://www.universalair.com/web/image/product.template/511/image_1920?unique=700031f

Dual Pewter 480C Value Pack (200 PSI, 480C/2, 165/200 P. Switch, 40 Amp Relay/2, Fuse Holder)

$ 462.95 462.95 USD $ 462.95

$ 462.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004810
    Shipping Weight: 26 lb
    Internal Reference: VA-48012
    Brand: Viair
    Manufacture Part Number: 48012

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    It features horizontal cooling fins and a trapezoidal head design.

    FASTER FILLS
    Fill your tank from 165 to 200PSI
    in just 1 min 25 sec.

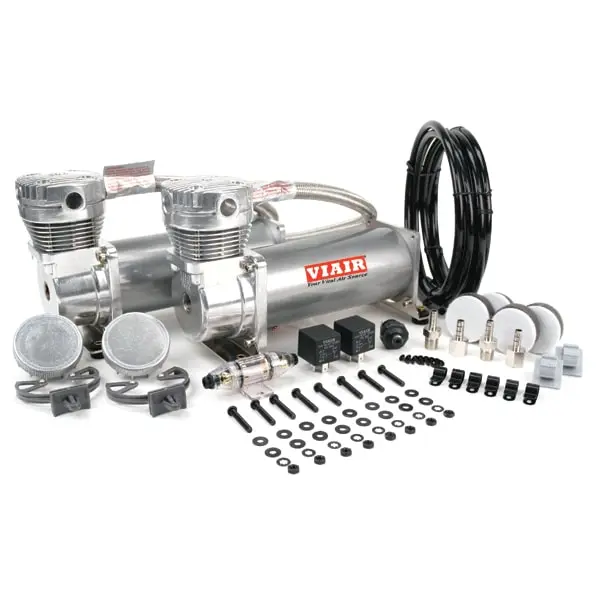

    Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Pewter air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.

    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    – (2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – (2) Air Filter Assemblies– Permanent Magnetic Motor
    – (2) Remote Mount Brackets– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
    – (2) Sets of Remote Mount Fittings– Max. Working Pressure: 200 PSI
    – (2) Sets of Spare Air Filter Elements– Max. Air Tank Size: 10.0 Gallon
    – (2) Leader Hose Clips– Combined Max. Amp Draw: 44 Amps
    – (6) Air Line Clips with Included Hardware– Ingress Protection Rating: IP67
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)– Net Weight: 22.10 lbs.
    – (2) 40-Amp Relays–
    – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)–
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		3.5325
    		0
    		100.025
    10
    		3.1028
    		1.086.529
    20
    		3.0031
    		2.081.433
    30
    		2.8633
    		3.076.835
    40
    		2.7535
    		4.072.737
    50
    		2.6436
    		5.067.639
    60
    		2.5537
    		6.061.241
    70
    		2.4339
    		7.055.342
    80
    		2.2640
    		8.050.144
    90
    		2.1241
    		9.045.044
    100
    		1.9742
    		10.040.643
    110
    		1.8443
    		11.036.841
    120
    		1.7244
    		12.032.440
    130
    		1.5944
    		13.028.037
    140
    		1.4943
    		14.024.836
    150
    		1.3842



    160
    		1.2941



    170
    		1.1840



    180
    		1.0939



    190
    		0.9737



    200
    		0.9036



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI2 min. 22 sec. (± 10 sec.)
    165 to 200 PSI38 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 200 PSI5 min. 02 sec. (± 10 sec.)
    165 to 200 PSI1 min. 25 sec. (± 05 sec.)
    10.0 Gallon TankFill Rate
    0 to 200 PSI10 min. 30 sec. (± 15 sec.)
    165 to 200 PSI3 min. 10 sec. (± 10 sec.)
    – (2) 480C (Pewter, Chrome, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
    – Net Weight: 22.10 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    03.53250100.025
    103.10281.086.529
    203.00312.081.433
    302.86333.076.835
    402.75354.072.737
    502.64365.067.639
    602.55376.061.241
    702.43397.055.342
    802.26408.050.144
    902.12419.045.044
    1001.974210.040.643
    1101.844311.036.841
    1201.724412.032.440
    1301.594413.028.037
    1401.494314.024.836
    1501.3842
    1601.2941
    1701.1840
    1801.0939
    1900.9737
    2000.9036

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI2 min. 22 sec. (± 10 sec.)
    165 to 200 PSI38 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI5 min. 02 sec. (± 10 sec.)
    165 to 200 PSI1 min. 25 sec. (± 05 sec.)
    10.0 GALLON TANKFILL RATE
    0 to 200 PSI10 min. 30 sec. (± 15 sec.)
    165 to 200 PSI3 min. 10 sec. (± 10 sec.)
    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
