480C Dual Chrome Value Pack

https://universalair-uas.odoo.com/web/image/product.template/510/image_1920?unique=9977e33
(0 review)

200 PSI, 480C/2, 165/200 P. Switch, 40 Amp Relay/2, Fuse Holder

$ 522.50 522.5 USD $ 522.50

$ 522.50

    This combination does not exist.

    Contact Us



    Barcode: 818114004827
    Shipping Weight: 25.2 lb
    Internal Reference: VA-48032
    Brand: Viair
    Manufacture Part Number: 48032

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    It features horizontal cooling fins and a trapezoidal head design.

    FASTER FILLS
    Fill your tank from 165 to 200PSI
    in just 1 min 25 sec.

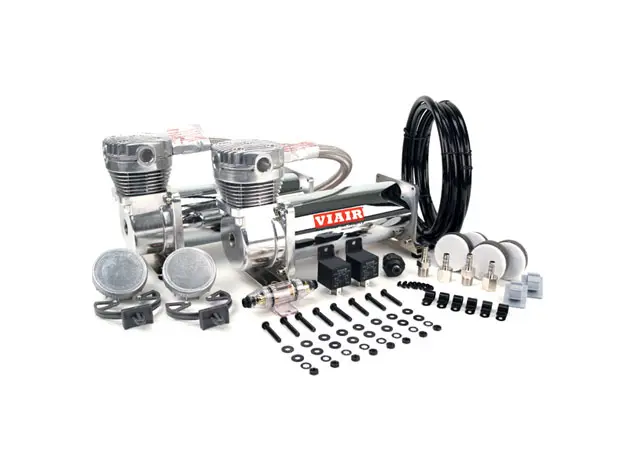

    Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Pewter air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.

    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Performance Data

    * Supply Voltage: 13.8 Volts

    Fill Rates

    – (2) 480C Chrome Air Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)

    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
    – Net Weight: 22.10 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.


    PSICFMABARLPMA
    03.53250100.025
    103.10281.086.529
    203.00312.081.433
    302.86333.076.835
    402.75354.072.737
    502.64365.067.639
    602.55376.061.241
    702.43397.055.342
    802.26408.050.144
    902.12419.045.044
    1001.974210.040.643
    1101.844311.036.841
    1201.724412.032.440
    1301.594413.028.037
    1401.494314.024.836
    1501.3842
    1601.2941
    1701.1840
    1801.0939
    1900.9737
    2000.9036

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI2 min. 22 sec. (± 10 sec.)
    165 to 200 PSI38 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI5 min. 02 sec. (± 10 sec.)
    165 to 200 PSI1 min. 25 sec. (± 05 sec.)
    10.0 GALLON TANKFILL RATE
    0 to 200 PSI10 min. 30 sec. (± 15 sec.)
    165 to 200 PSI3 min. 10 sec. (± 10 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
