480C Chrome Compressor Kit Single

480C 200 PSI Chrome Compressor Kit, 3/8" Port (12V, 100% Duty @ 100 PSI, 50% Duty @200 PSI)

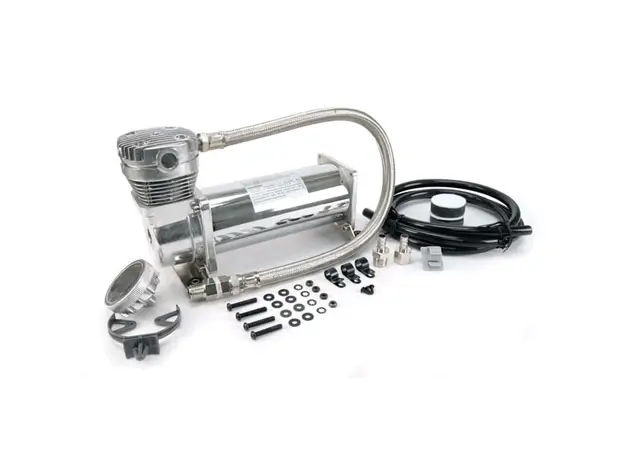

480C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

Features & Specifications

Features	Specifications
– Thermal Overload Protector	– 12-Volt
– Check Valve	– Permanent Magnetic Motor
– Vibration Isolators	– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
– Mounting Hardware	– Max. Working Pressure: 200 PSI
– Stainless Steel Braided Leader Hose	– Max. Air Tank Size: 5.0 Gallon
– Air Line for Remote Mount Air Filter	– Max. 12V Amp Draw: 23 Amps
– Remote Mount Air Filter Assembly	– Ingress Protection Rating: IP67
– (2) Replacement Air Filter Elements	– Dimensions: 10.87″L x 4.2″W x 6.75″H
– Installation Instructions	– Net Weight: 11.05 lbs.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	1.86	10	0	52.7	10
10	1.75	12	1.0	47.5	13
20	1.59	14	2.0	43.2	15
30	1.52	15	3.0	40.7	16
40	1.45	16	4.0	38.1	18
50	1.41	17	5.0	35.3	18
60	1.33	18	6.0	32.6	19
70	1.26	18	7.0	30.0	20
80	1.20	19	8.0	27.0	22
90	1.13	19	9.0	25.0	22
100	1.07	20	10.0	22.3	21
110	0.99	21	11.0	20.1	21
120	0.93	23	12.0	18.3	21
130	0.88	22	13.0	16.0	20
140	0.82	22	14.0	14.0	19
150	0.75	21
160	0.71	21
170	0.67	21
180	0.61	21
190	0.55	20
200	0.51	19

* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon Tank	Fill Rate
0 to 145 PSI	2 min. 50 sec. (± 10 sec.)
110 to 145 PSI	57 sec. (± 05 sec.)
0 to 200 PSI	5 min. 02 sec. (± 10 sec.)
165 to 200 PSI	1 min. 30 sec. (± 05 sec.)
5.0 Gallon Tank	Fill Rate
0 to 145 PSI	6 min. 02 sec. (± 10 sec.)
110 to 145 PSI	1 min. 55 sec. (± 05 sec.)
0 to 200 PSI	10 min. 30 sec. (± 15 sec.)
165 to 200 PSI	3 min. 10 sec. (± 10 sec.)
