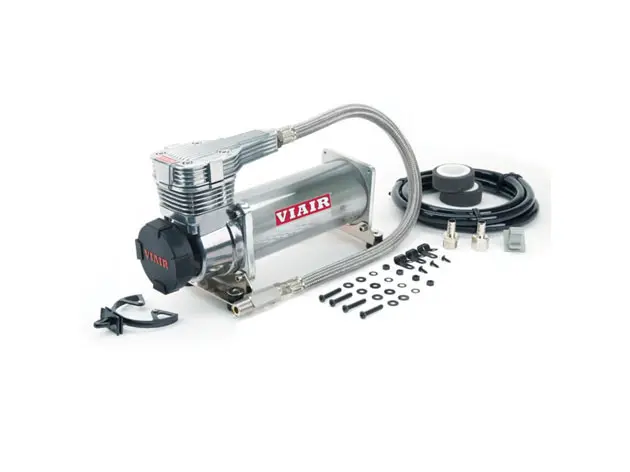

485c Single Platinum(Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo

https://universalair-uas.odoo.com/web/image/product.template/515/image_1920?unique=d3c1cef
(0 review)

485c Single Platinum(Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo

$ 409.95 409.95 USD $ 409.95

$ 409.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004865
    Shipping Weight: 13 lb
    Internal Reference: VA-48500
    Brand: Viair
    Manufacture Part Number: 48500

    485c Single Platinum(Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo

    VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

    The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – 485C (Platinum or Stealth Black) Compressor– Permanent Magnetic Motor
    – Air Filter Assembly– Duty Cycle: 100% @ 200 PSI
    – VIAIR Removable Filter Cover– Max. Working Pressure: 200 PSI
    – (2) Replacement Air Filter Elements– Max. Air Tank Size: 5.0 Gallon
    – Remote Mount Bracket– Combined Max. Amp Draw: 23 Amps
    – Set of Remote Mount Fitting– Ingress Protection Rating: IP67
    – Set of Spare Air Filter Elements– Dimensions: 10.63″L x 4.1″W x 6.44″H
    – (2) Leader Hose Clips– Net Weight: 11.10 lbs.
    – Air Line Clip with Included Hardware–
    – Mounting Hardware–
    – Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)–
    – 40-Amp Relay–
    – One Pressure Switch (165 PSI on, 200 PSI off)–
    – Stainless Steel Braided Leader Hose with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		2.2412
    		0
    		70.012
    10
    		1.8414
    		1.051.015
    20
    		1.7516
    		2.047.016
    30
    		1.6717
    		3.044.018
    40
    		1.6118
    		4.041.020
    50
    		1.5419
    		5.038.021
    60
    		1.4720
    		6.035.021
    70
    		1.4221
    		7.032.022
    80
    		1.3621
    		8.029.022
    90
    		1.30229.027.022
    100
    		1.232210.025.023
    110
    		1.172211.022.022
    120
    		1.112212.021.021
    130
    		1.062213.021.021
    140
    		1.0123
    		13.821.021
    150
    		0.9722


    160
    		0.9222


    170
    		0.8822


    180
    		0.8421


    190
    		0.7721


    200
    		0.7321


    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI4 min. 50 sec. (± 10 sec.)
    165 to 200 PSI1 min. 15 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 200 PSI9 min. 45 sec. (± 15 sec.)
    165 to 200 PSI2 min. 25 sec. (± 05 sec.)
