485c Dual Pack Platinum(Gen 2)

https://universalair-uas.odoo.com/web/image/product.template/513/image_1920?unique=17fa32c
(0 review)

485c Dual Pack Platinum(Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo (200 PSI)

530.95 530.95 USD 530.95

530.95

    This combination does not exist.


    Barcode: 818114004889
    Shipping Weight: 25.3 lb
    Internal Reference: VA-48532
    Brand: Viair
    Manufacture Part Number: 48532

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    Delivers game-changing performance, rated at 100% duty @ 200 PSI.

    FASTER FILLS
    Fill your tank from 165 to 200PSI
    in just 1 min 15 sec.

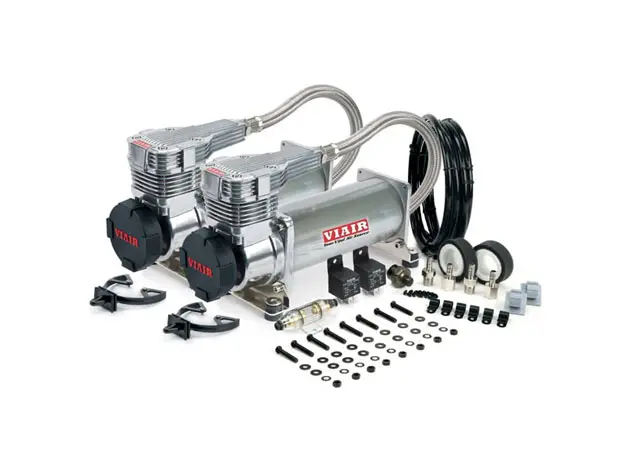

    – (2) 485C Platinum Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) VIAIR Removable Filter Covers
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
    – (2) 40-Amp Relays
    – (1) One Pressure Switch (165 PSI on, 200 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 200 PSI
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
    – Net Weight: 22.10 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    03.82230110.023
    103.51261.093.027
    203.27302.084.031
    303.05323.075.035
    402.90354.071.037
    502.73375.065.039
    602.61386.061.041
    702.45407.055.041
    802.34418.050.042
    902.24419.045.042
    1002.094110.041.042
    1101.944211.039.041
    1201.874212.034.040
    1301.724213.032.040
    1401.644214.029.039
    1501.5542
    1601.4841
    1701.3741
    1801.2941
    1901.2240
    2001.1339

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI2 min. 20 sec. (± 10 sec.)
    165 to 200 PSI35 sec. (± 03 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI4 min. 50 sec. (± 15 sec.)
    165 to 200 PSI1 min. 15 sec. (± 05 sec.)
