485c Dual Pack Platinum(Gen 2)

https://universalair-uas.odoo.com/web/image/product.template/513/image_1920?unique=4a2f578
(0 review)

485c Dual Pack Platinum(Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo (200 PSI)

$ 590.25 590.25 USD $ 590.25

$ 590.25

    This combination does not exist.

    Contact Us



    Barcode: 818114004889
    Shipping Weight: 25.3 lb
    Internal Reference: VA-48532
    Brand: Viair
    Manufacture Part Number: 48532

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    Delivers game-changing performance, rated at 100% duty @ 200 PSI.

    FASTER FILLS
    Fill your tank from 165 to 200PSI
    in just 1 min 15 sec.

    VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

    The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications

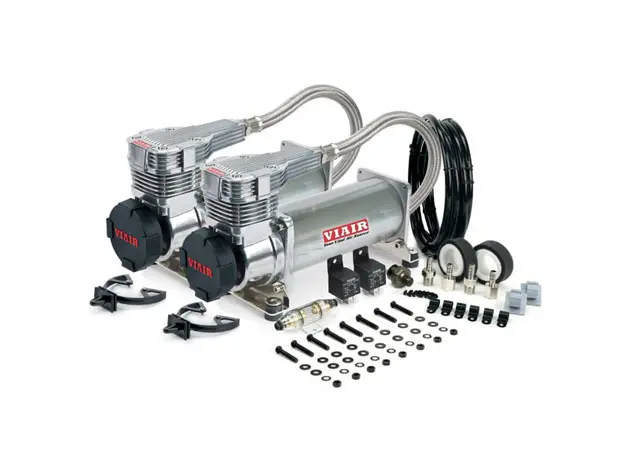

    – (2) 485C (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – (2) Air Filter Assemblies– Permanent Magnetic Motor
    – (2) VIAIR Removable Filter Covers– Duty Cycle: 100% @ 200 PSI
    – (2) Remote Mount Brackets– Max. Working Pressure: 200 PSI
    – (2) Sets of Remote Mount Fittings– Max. Air Tank Size: 10.0 Gallon
    – (2) Sets of Spare Air Filter Elements– Combined Max. Amp Draw: 44 Amps
    – (2) Leader Hose Clips– Ingress Protection Rating: IP67
    – (6) Air Line Clips with Included Hardware– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Net Weight: 22.10 lbs.
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)–
    – (2) 40-Amp Relays–
    – (1) One Pressure Switch (165 PSI on, 200 PSI off)–
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		3.8223
    		0
    		110.023
    10
    		3.5126
    		1.093.027
    20
    		3.2730
    		2.084.031
    30
    		3.0532
    		3.075.035
    40
    		2.9035
    		4.071.037
    50
    		2.7337
    		5.065.039
    60
    		2.6138
    		6.061.041
    70
    		2.4540
    		7.055.041
    80
    		2.34418.050.042
    90
    		2.24419.045.042
    100
    		2.094110.041.042
    110
    		1.944211.039.041
    120
    		1.874212.034.040
    130
    		1.724213.032.040
    140
    		1.644214.029.039
    150
    		1.5542


    160
    		1.4841



    170
    		1.3741



    180
    		1.2941


    190
    		1.2240



    200
    		1.1339



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI2 min. 20 sec. (± 05 sec.)
    165 to 200 PSI35 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 200 PSI4 min. 50 sec. (± 15 sec.)
    165 to 200 PSI1 min. 15 sec. (± 05 sec.)
    – (2) 485C Platinum Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) VIAIR Removable Filter Covers
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
    – (2) 40-Amp Relays
    – (1) One Pressure Switch (165 PSI on, 200 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 200 PSI
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
    – Net Weight: 22.10 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    03.82230110.023
    103.51261.093.027
    203.27302.084.031
    303.05323.075.035
    402.90354.071.037
    502.73375.065.039
    602.61386.061.041
    702.45407.055.041
    802.34418.050.042
    902.24419.045.042
    1002.094110.041.042
    1101.944211.039.041
    1201.874212.034.040
    1301.724213.032.040
    1401.644214.029.039
    1501.5542
    1601.4841
    1701.3741
    1801.2941
    1901.2240
    2001.1339

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI2 min. 20 sec. (± 10 sec.)
    165 to 200 PSI35 sec. (± 03 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI4 min. 50 sec. (± 15 sec.)
    165 to 200 PSI1 min. 15 sec. (± 05 sec.)
